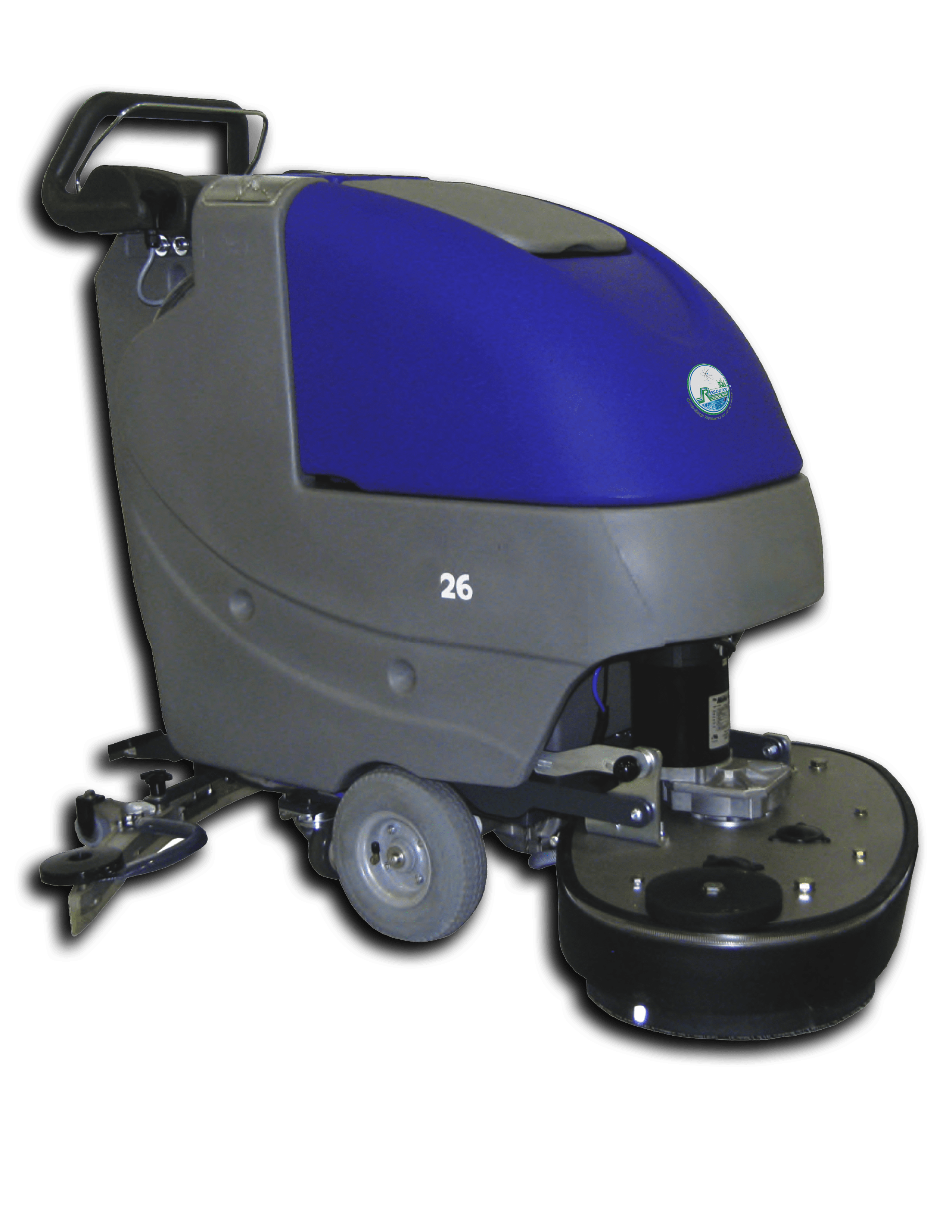

Resource Vortex 26

Resource Vortex 26

• The Vortex 26 is a disc brush scrubber with a 26” cleaning path

• Traction drive model

• Cost effective solution to large scrubbing needs

• The Vortex 26 covers 26,000 sq. ft. per hour (2,415m²)

• Low brush deck is ideal for cleaning around and underneath

obstacles

• Large tank opening for fast filling

Description

General Overview

• The Vortex 26 is a disc brush scrubber with a 26” cleaning path

• Traction drive model

• Cost effective solution to large scrubbing needs

• The Vortex 26 covers 26,000 sq. ft. per hour (2,415m²)

• Low brush deck is ideal for cleaning around and underneath

obstacles

• Large tank opening for fast filling

Ease of Use

• Easy-to-understand controls ensure that the machine

is simple to operate

• Compact design results in total operator comfort by

focusing on ergonomics

• Sleek design provides an excellent line of sight to the

area to be cleaned

Brush Speed	180 RPM
Brush Type	Disc
Drive Motor	.2HP (150 W)
Number of Brushes	2
Performance	35,464 ft2 /hr (3,294 m²)
Rated Voltage	24 Volts
Recovery Capacity	13 Gal (49 liters)
Solution Capacity	12 Gal (45 liters)
Squeegee Width	35.4 in (90 cm)
Vacuum Flow	65 cfm (110 m3/hr)
Vacuum Power	.60 HP (450 W
Vacuum Waterlift	45 inches (112 mbar)
Weight	372 lbs (169 kg)
Weight without drive/batteries	238 lbs (108 kg)
Working Speed	3.1 mph (5 km per hr)
